PRODUCT OVERVIEW

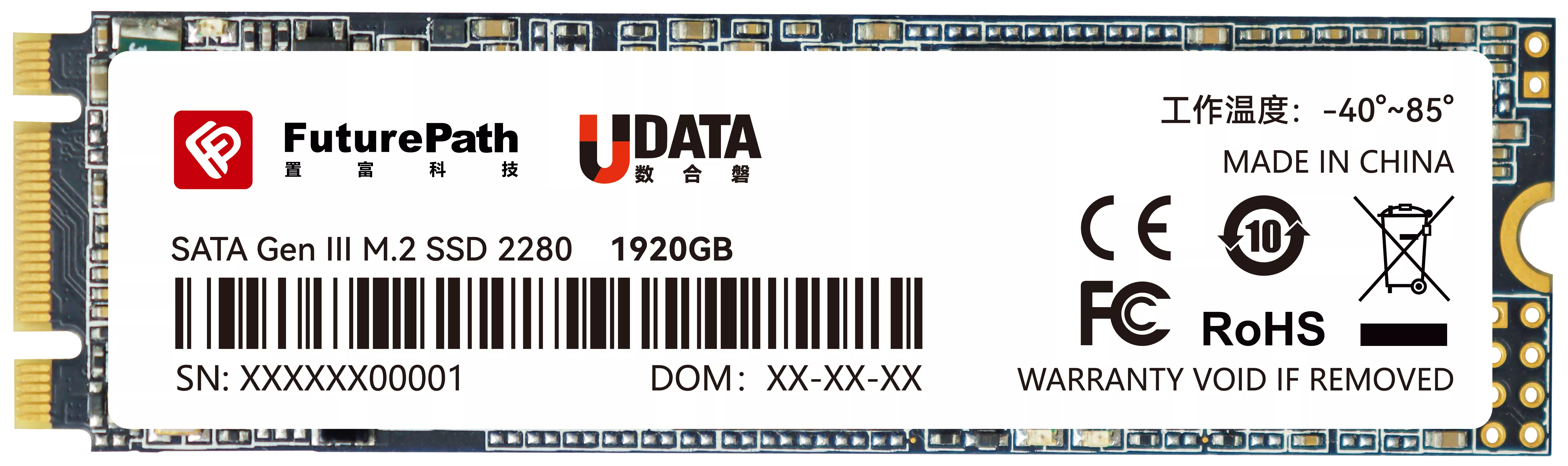

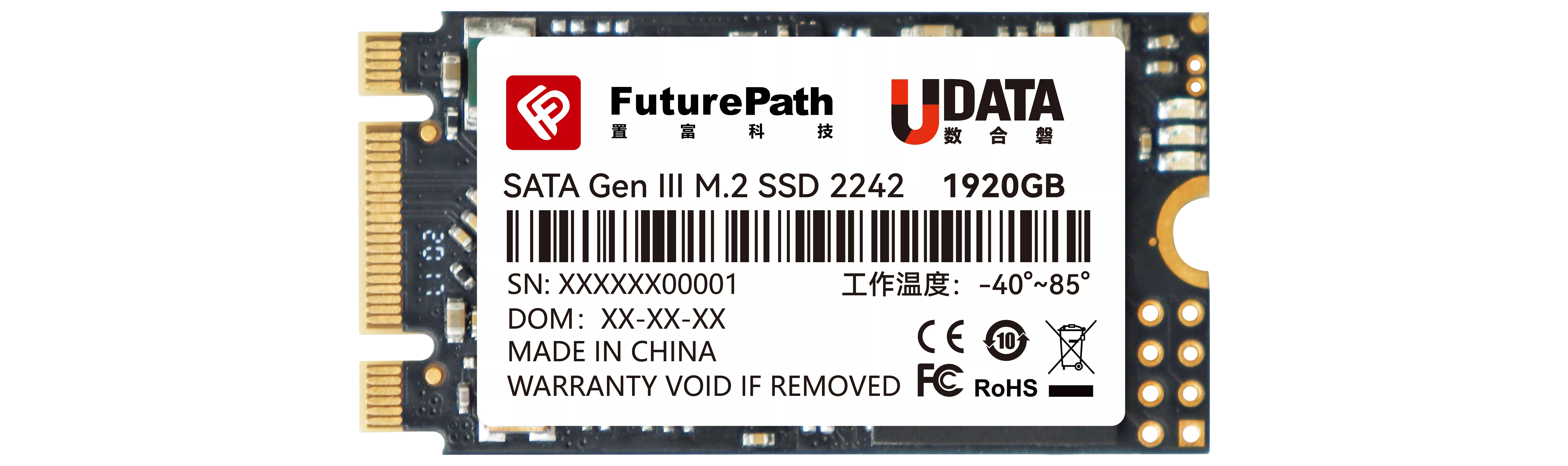

Futurepath UDATA brand Industrial-grade M.2 2280/2242 SATA SSD

The product supports SATA Ⅲ (6Gb/s) interface and its performance can meet the requirements of PC or educational electronic products. The product adopts a single-sided ultra-thin design, with small size and large capacity;

it can support device sleep mode (Device Sleep), and has ultra-low power consumption to meet the battery life of PC devices. It supports multiple technologies such as ECC, TRIM, and SMART, ensuring the continuous, reliable and stable operation of the product, and providing users with a better experience

3D NAND Flsha
It adopts 3D NAND Flash, offering more stable and outstanding performance. It can be used in the environment ranging from -40℃ to 85℃, being stable and reliable
High reliability
Designed with high-performance components and subjected to rigorous testing procedures, it can withstand extreme working environments, ensuring industry-leading durability and reliability
Resistant to wide-temperature range
Through high and low temperature cycling screening tests, it ensures that the selected particles can perform exceptionally well in extreme environments and demanding applications, and can be used in the temperature range of -40℃ to 85℃
Large capacity
Optimize the combination and configuration, using a highly reliable main controller and mainstream storage chips,
It can support a maximum capacity of 2TB
Product Features

Supports 2TB high-capacity

————————————————————————————————————————————————

SATA III 6Gbps interface protocol, backward compatible with 1.5Gbps and 3Gbps

————————————————————————————————————————————————

Compliant with the JEDEC MO-300 Standard

———————————————————————————————————————————————— Support LDPC

————————————————————————————————————————————————

Compliant with ATA/ATAPI-8 standards

————————————————————————————————————————————————

Working temperature: -40°C to 85°C

————————————————————————————————————————————————

Average Mean time between failures is: 2,000,000 hours

————————————————————————————————————————————————

Support TRIM

————————————————————————————————————————————————

Application Scenario

Slim passenger aircraft

————————————————————————————————————————————————

Video acquisition terminal

————————————————————————————————————————————————

Environmental Monitoring Terminal

———————————————————————————————————————————————— Edge computing system

———————————————————————————————————————————————— Financial Integrated Machine

———————————————————————————————————————————————— Medical integrated machine

————————————————————————————————————————————————

Network security equipment terminal machin————————————————————————————————————————————————

AI - Artificial Intelligence

————————————————————————————————————————————————

Big Data

———————————————————————————————————————————————— Internet of Things

———————————————————————————————————————————————— Data economic interaction system

————————————————————————————————————————————————

Machine Vision

————————————————————————————————————————————————


Specification Parameter

Basic specifications
ModelMG600 Series
InterfaceSATA 6.0Gbps
FLASH Type3D TLC
Maximum Channels4
Dementions(L×W×H)80.00x22.00x2.38mm/42.00x22.00x2.38mm
Capacity128GB~2TB

Performance and power consumption






Seq read/write（MB/s）550/510
4K random read/write IOPS94K/85K
Operating voltage3.3V±5%
Maximum power consumption1.75W

Product features








Operating temperature-20℃~70℃/-40℃~85℃

Storage temperature

-40℃~85℃
ATA securitySupport
UBER1 Sector Per 1016 Bits Read
MTBF200 hours
DWPD>1
External DRAM cacheSupport
Three-in-One Security
Optional
Three-in-One SecurityLDPC, power-off protection, end-to-end data protection
Warranty period3 Years
