PRODUCT OVERVIEW

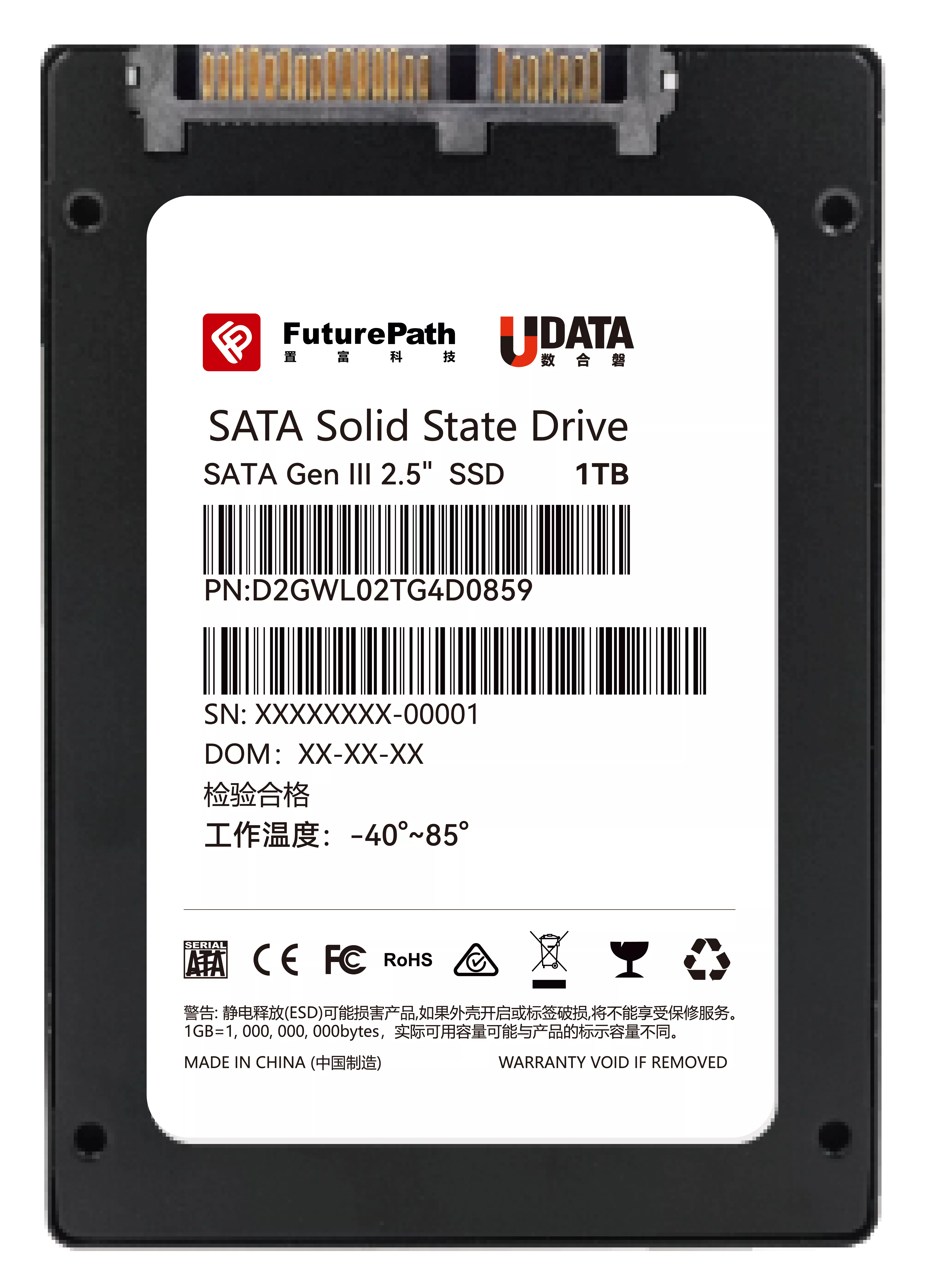

Futurepath UDATA brand Industrial-grade 2.5" SATA SSD

Futurepath Technology company's “UDATA” brand 2.5" SATA Solid State Drive is a rugged industrial-grade 2.5-inch SATA SSD that supports SATA Ⅲ (6Gb/s). The product uses high-quality 3D NAND and

can meet the high reliability and stability requirements of industrial control products. It supports capacities ranging from 128GB to 4TB. By using the voltage detection circuit and backup capacitor, in case of abnormal power failure, data security can be ensured. For different industrial control application scenarios,

customized services can be provided to better meet different storage requirements.

3D NAND
It adopts 3D NAND Flash, offering more stable and outstanding performance. It can be used in the environment ranging from -40℃ to 85℃, being stable and reliable
High reliability
Designed with high-performance components and subjected to rigorous testing procedures, it can withstand extreme working environments, ensuring industry-leading durability and reliability
Resistant to wide-temperature range
Through high and low temperature cycling screening tests, it ensures that the selected particles can perform exceptionally well in extreme environments and demanding applications, and can be used in the temperature range of -40℃ to 85℃
Large capacity
Optimize the combination and configuration, using a highly reliable main controller and mainstream storage chips,
It can support a maximum capacity of 2TB
Product Features

Supports 4TB high-capacity

————————————————————————————————————————————————

SATA III 6Gbps interface protocol, backward compatible with 3Gbps and 1.5Gbps

————————————————————————————————————————————————

Compliant with the JEDEC MO-300 Standard

———————————————————————————————————————————————— Support LDPC

————————————————————————————————————————————————

Compliant with ATA/ATAPI-8 standards

————————————————————————————————————————————————

Working temperature: -40°C to 85°C

————————————————————————————————————————————————

Average Mean time between failures is: 2,000,000 hours

————————————————————————————————————————————————

Support TRIM

————————————————————————————————————————————————

Application Scenario

Slim passenger aircraft

————————————————————————————————————————————————

Video acquisition terminal

————————————————————————————————————————————————

Environmental Monitoring Terminal

———————————————————————————————————————————————— Edge computing system

———————————————————————————————————————————————— Financial Integrated Machine

———————————————————————————————————————————————— Medical integrated machine

————————————————————————————————————————————————

Network security equipment terminal machin————————————————————————————————————————————————

AI - Artificial Intelligence

————————————————————————————————————————————————

Big Data

———————————————————————————————————————————————— Internet of Things

———————————————————————————————————————————————— Data economic interaction system

————————————————————————————————————————————————

Machine Vision

————————————————————————————————————————————————


Specification Parameters

Basic specifications
ModelTG600 Series
InterfaceSATA 6.0Gbps
FLASH Type3D TLC
Maximum Channels48
Dementions(L×W×H)100.00 x 69.85 x 7mm
Capacity128GB~4TB

Performance and power consumption






Seq read/write（MB/s）550/510
4K random read/write IOPS94K/85K
Operating voltage5.0V±5%
Maximum power consumption3.7W

Product features








Operating temperature-20℃~70℃/-40℃~85℃

Storage temperature

-40℃~85℃
ATA securitySupport
UBER1 Sector Per 10167 Bits Read
MTBF200 hours
DWPD>1
External DRAM cacheSupport
Three-in-One Security
Optional
Three-in-One SecurityLDPC, power-off protection, end-to-end data protection
Warranty period3 Years
